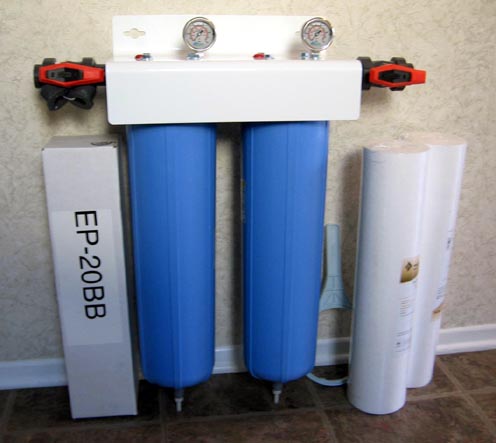

BIG BLUE WHOLE HOUSE SYSTEM

TWO 20" BIG BLUE CORROSION RESISTANT POLYPROPYLENE HOUSINGS

CAPS WITH PRESSURE RELEASE VALVES

DUAL MOUNTING BRACKET WITH SCREWS

TWO PRESSURE GUAGES

CONNECTION NIPPLE

TWO SHUT OFF BALL VALVES

WRENCH

TWO 20" 1 MICRON, DUAL-GRADIENT DENSITY, PRE-FILTER CARTRIDGES

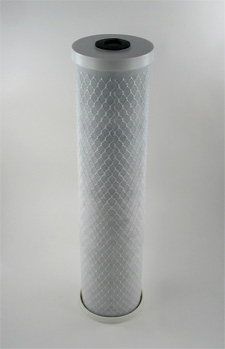

ONE 20" HALF MICRON SOLIDE CARBON BLOCK CARTIDGE

FILTERS 5 GALLONS PER MINUTE

FILTERS AS SMALL AS 0.5 MICRONS

99.95% REMOVAL OF CRYPTOSPORIDIUM, GIARDIA, ENTAMOEBA AND TOXOPLASMA CYSTS

REMOVES BAD TASTE, ODORS AND CHLORINE

ONE YEAR CARTRIDGE LIFE SPAN (150,000 GALLONS)

DRAIN VALVES ON BOTTOM OF EACH HOUSING

EASY TO MAINTAIN

COMES WITH EXTRA PRE-FILTER

10 YEAR WARRANTY

FREE ANNUAL MAINTANENCE AND SERVICE (for local clients)

PRE-FILTER HAS THREE TIMES THE DIRT-HOLDING CAPACITY THAN OTHER SIMILAR MODELS

THE FILTER DEPTH HAS BEEN INCREASED BY 233%

IDEAL FOR ALL RESIDENTIAL, RURAL, MUNICIPAL AND COMMERCIAL APPLICATIONS

FDA APPROVED MATERIALS

NOTES;

WHEN P.S.I ON THE PRESSURE VALVES SHOW A DIFFERENCE OF 15 PSI

IT IS TIME TO CHANGE THE CARBON BLOCK.

IF FLOW RATE IS NOTISABLY LOWER THIS WOULD INDICATE IT IS DUE.

AVERAGE LIFE SPAN FOR PRE-FILTER IS 6 MONTHS

AVERAGE LIFE SPAN FOR CARBON BLOCK IS 8 MONTHS TO 16 MONTHS (1 YEAR AVERAGE)

AVERAGE LIFE SPAN FOR 5 MICRON CARBON BLOCK IS 4 MONTHS TO 8 MONTHS (6 MONTHS AVERAGE)

.5 MICRON CARBON BLOCK CAN FILTER ABOUT 570.000 LITRES

FITS 3/4" PIPING BUT CAN BE ONE INCH

PRE-FILTER(DGD-2501-20) DIMENTIONS ARE 4-1/2" X 20". IT STARTS TO FILTER 20 MICRONS, THEN TO 1 MICRON

FLOW RATE ON PRE-FILTER IS 20 GPM's

OPTIONAL 14 GMP ULTRA VIOLET LIGHT POST FILTER (IDEAL FOR RURAL)

OPTIONAL BY-PASS KIT

0.5 MICRON BLOCK IDEAL FOR COUPLE (8.5psi @ 4gpm) 150.000 gallons)

5 MICRON BLOCK IDEAL FOR AVERAGE FAMILY (2.5psi @ 4gpm) 42.000 gallons)

With average family, both pre-filter and 5 micron block should be changed every 6 months.
